Blackmagic ATEM Mini Pro ISO Switcher and Camera package
Blackmagic Mini Pro ISO Switcher with 4 PXW70 cameras, Tripods and cables.
Supplied with:
Compatible with:
- 1x Monitor
- 1x Blackmagic ATEM Mini Pro ISO
- 4x PXW70's HD
- 4x Tripods
- 4x 10m HDMI's
- 1TB Hardrive
Blackmagic ATEM Mini Pro ISO Switcher and Camera package
for hire
PXW70, Sony, BM, Blackmagic, ATEM, Mini, ISO
Reach your audience:
- A complete kit consisting of a Black Magic Mini ISO switcher with 4 x PXW70 HD/4k cameras.
- Features miniaturized control panel based design.
- Built in support for recording each input as a separate ISO file (own drive required)
- Saves DaVinci Resolve project file for 1 click editing of live production.
- Supports connecting up to 4 cameras or computers.
- Live streaming via Ethernet supported on ATEM Mini Pro.
- USB output operates as a webcam and supports all video software.
- Automatically standards converts and re-syncs all HDMI inputs.
- Includes free ATEM Software Control for Mac and Windows.
- Internal media for 20 RGBA graphics for titles, opening plates and logos.
- Includes ATEM Advanced Chroma Key for green/blue screen work.
- Multiview allows monitoring of all cameras on ATEM Mini Pro.
- Audio mixer supports limiter, compressor, 6 band EQ and more!
Blackmagic Mini Pro ISO Switcher with 4 PXW70 cameras, Tripods and cables.
Specifications
Specifications

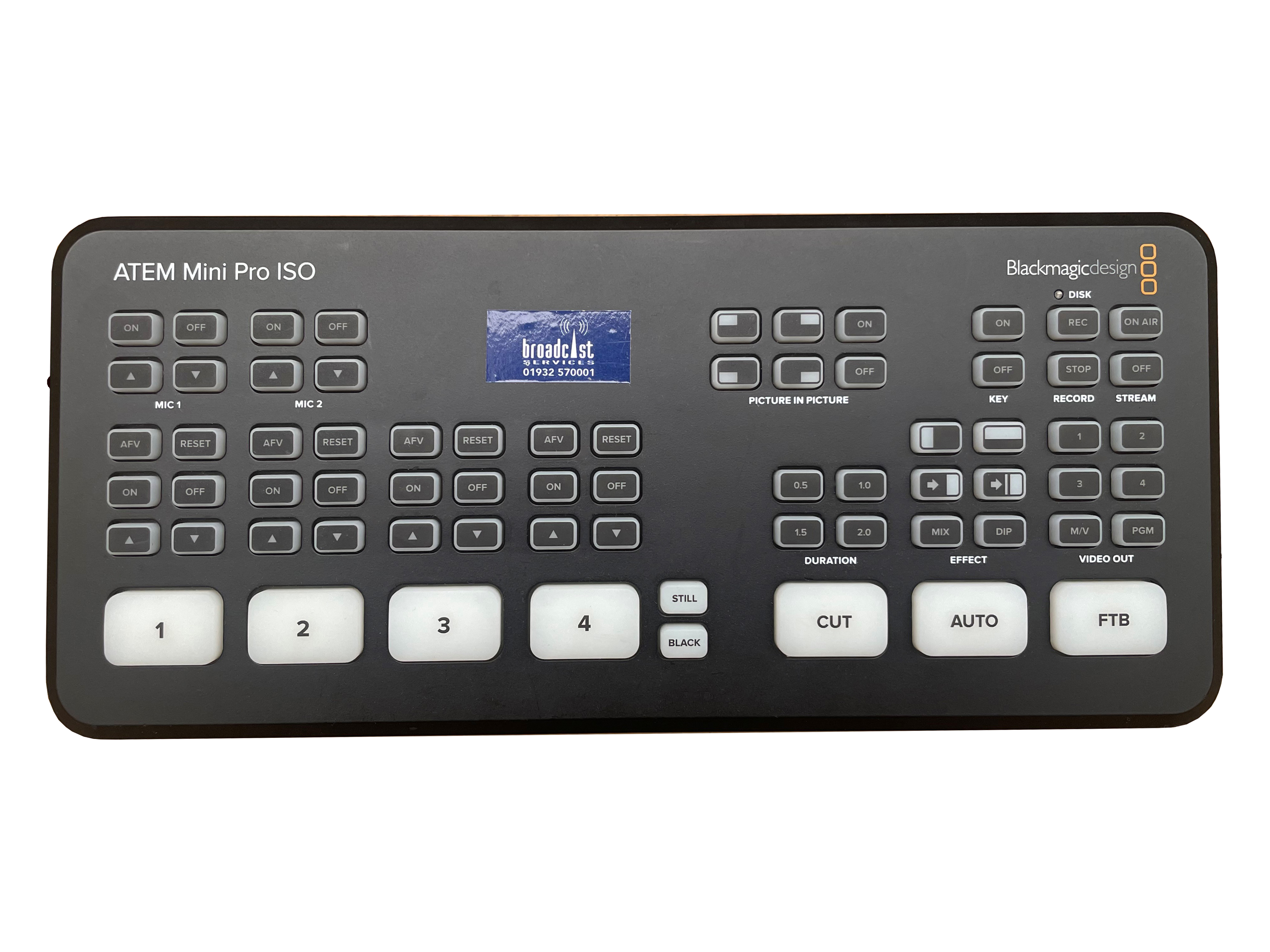

Blackmagic ATEM Mini Pro ISO Specification

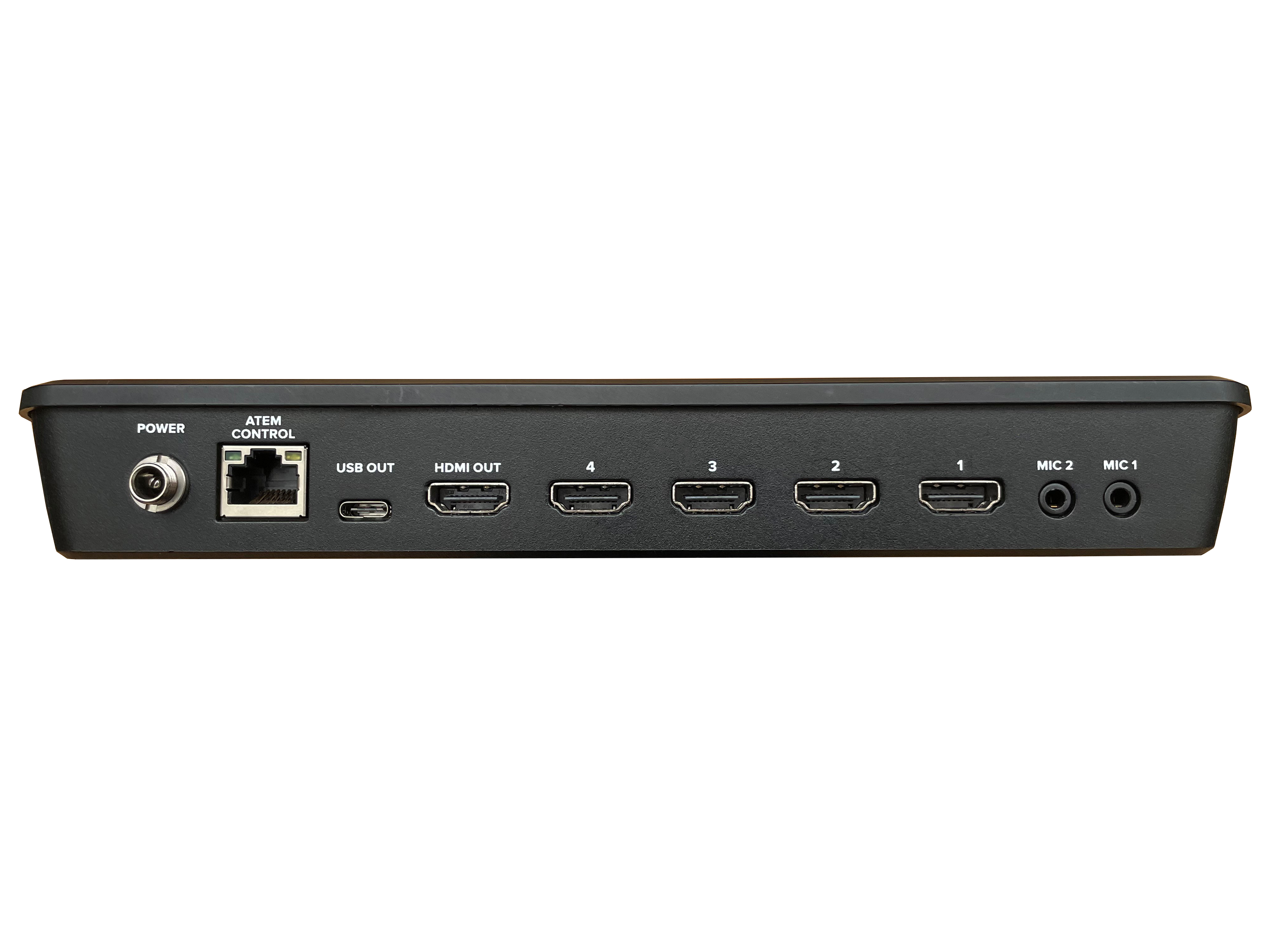

- Video Inputs: 4 x HDMI inputs, 10-bit HD switchable with 2 channel embedded audio
- Video Outputs: 1 x HDMI and 1x USB C out
- Audio Inputs: 2 x 3.5mm Stereo mini jack inputs
- Audio Outputs: Embedded audio only and Aux output
- Multiview function: available
- Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
- Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
- Dimensions: 10.35 x 23.75 x 3.5 cm

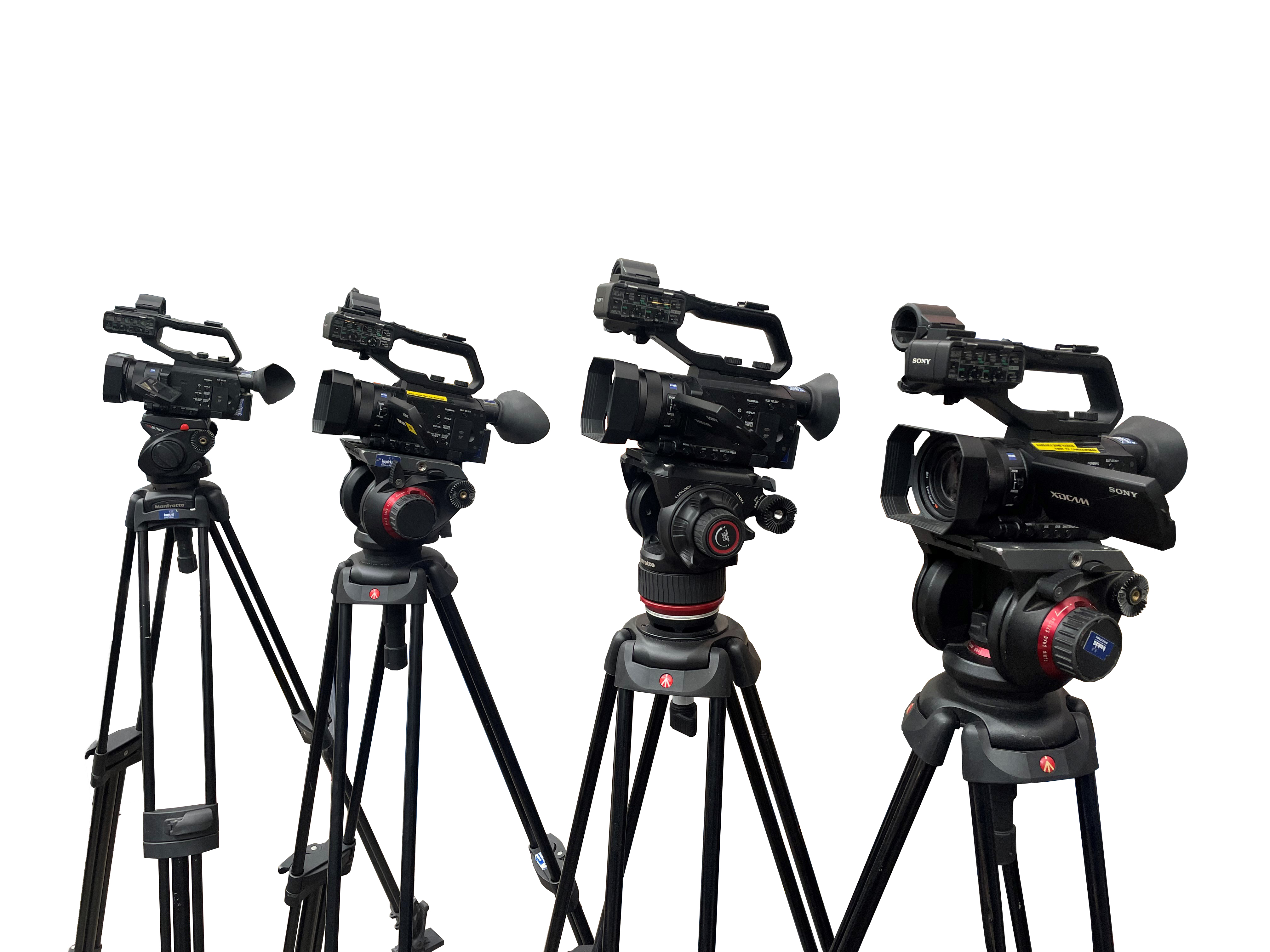

PXW70 Specifications
- Image Sensor: 1.0-type (13.2 x 8.8 mm) Exmor R CMOS sensor
- Effective Resolution: Approx. 14.2 M pixels
- Lens: 12x Optical zoom
18x Clear Image Zoom (4K) - Aperture: f/2.8 - f/4.5
- Focal Length: 9.3 to 111.6mm (Equivalent to 29 to 348mm on 16:9 35mm lens)
- Media Card Slots: 2 x SDXC
- 4:2:0 Recording: XAVC QFHD MPEG-4 AVC/H.264
XAVC Proxy MPEG-4 AVC/H.264 - 4:2:2 Recording: XAVC HD MPEG-4 AVC/H.264
- AVCHD Recording: MPEG-4 AVC/H.264 AVCHD 2.0
- Outputs: 1 x 3G-SDI
1 x HDMI
1 x Multi/Micro USB - Audio: 2 x XLR 3-pin, female
1 x 3.5 mm Stereo mini jack with plug-in power - ND Filters: 1/4 ND, 1/16 ND, 1/64 ND
- Display: 3.5" LCD
- Dimensions: 120.7 × 103.5 × 274.3 mm
- Weight: 1.4 kg (Including camera body, XLR handle unit, NP-FV70 battery, lens hood, and large eyecup)
